Hobby 53-13EL Electric Staple Gun (8mm-14mm,1702)

Hobby 53-13EL Electric Staple / Brad Nail Gun with 5000 Staples and 2000 Nails
(1702)

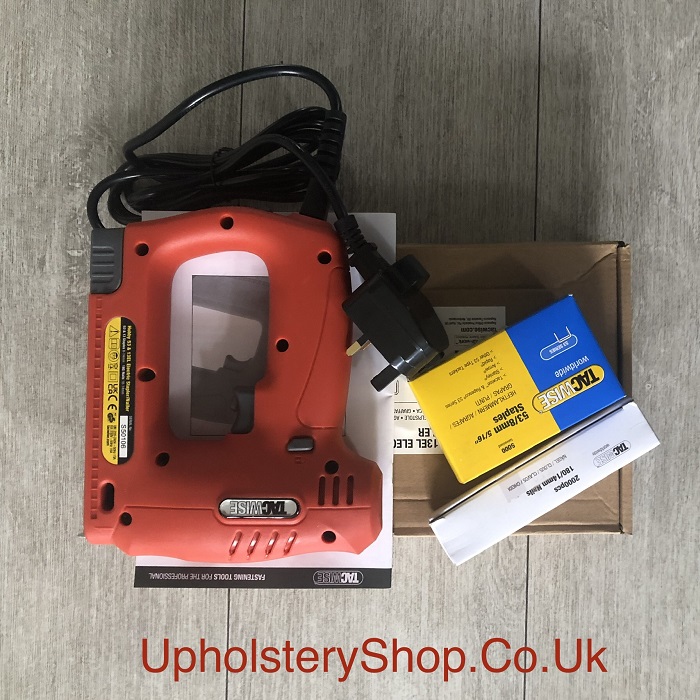

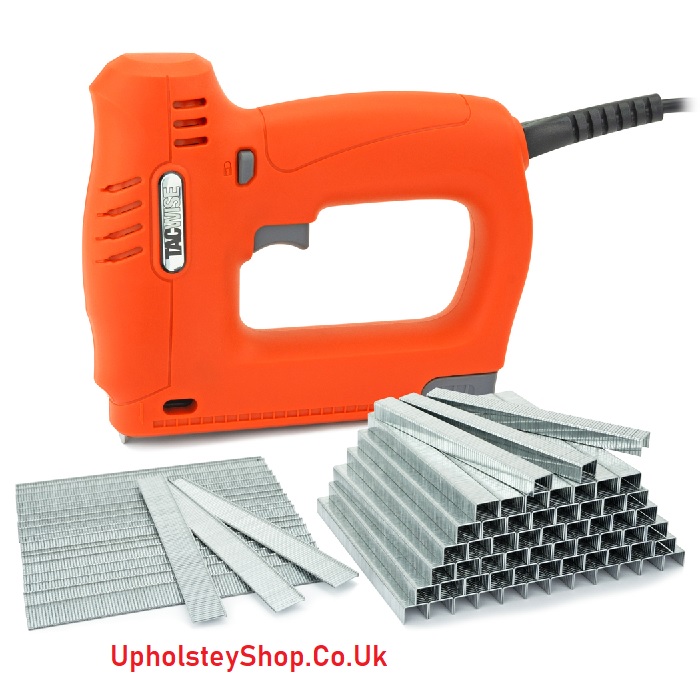

• HOBBY 2-IN-1 STAPLE/NAIL GUN – Corded staple and nail gun supplied with 5000 x type 53 / 8 mm staples and 2000 x type 18G / 14 mm nails, designed to bring comfort and reliability to continuous stapling and nailing tasks
• COMPATIBILITY – Efficient bottom loading magazine enables firing of 145 x type 53 / 8 – 14 mm staples, 150 x type 13 / 8 – 14 mm staples or 85 x type 180 (18G) / 10 – 14 mm brad nails without reloading; we strongly recommend using Tacwise staples/nails for a smooth, uninterrupted performance
• MAXIMISED PERFORMANCE – 30 staples or nails per minute firing speed, ultra-quick reloading system that allows switching between staples and nails without any adjustment for maximum peak performance and a convenient staple/nail viewing window 0.8
• KG ERGONOMIC DESIGN – Ultra lightweight design featuring a LED work light, 2m extra-long power cord with interchangeable UK and EU plug, safety contact nose, air vents, on/off switch and trigger lock switch for enhanced ease of use and extra security
• ROBUST – Impact resistant body featuring all-steel working parts including magazine and driver blade for consistent stapling and nailing results
• VARIETY OF APPLICATIONS – For shop, exhibition and show fittings, laying insulation, installing weather strips and thinner boards, light carpentry and picture framing, furniture repair and upholstery

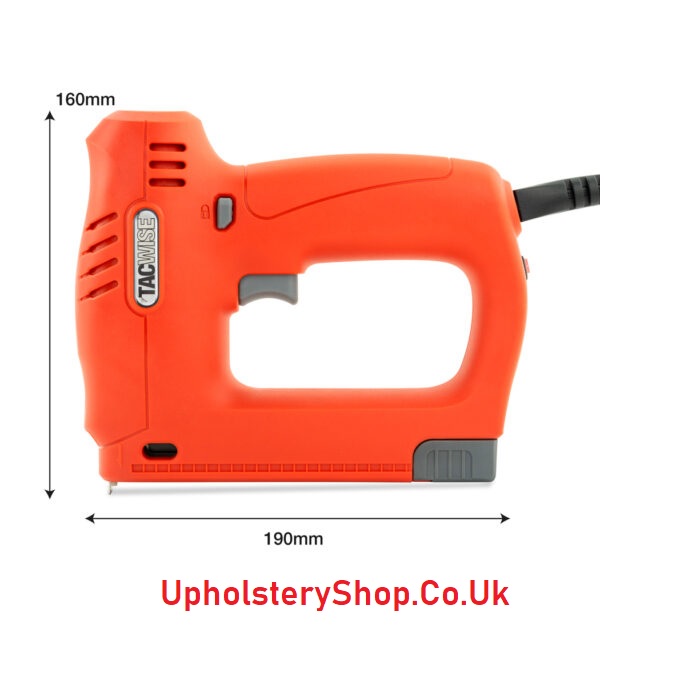

Length	160mm
Width	188mm
Height	54mm
Weight	0.8kg

Magazine Capacity	Staples 53: 145; Stpales 13: 150; Nails: 85
Fasteners length (mm)	Nails: 10-14mm; Staples: 8-14mm
Min. firing distance from wall	15mm



FEATURES:

• Air vents
• Bottom loading magazine
• Impact resistant body
• LED work light
• Long power cord
• Metal magazine
• Safety contact nose
• Safety on/off switch
• Single shot trigger
• Staple/nail viewing window
• Trigger safety lock switch
• Wide ergonomic grip



COMPATIBILITY (8mm-14mm ONLY)

Staples 53 Series

Staples 13 Series

• 53/8mm, 53/10mm, 53/12mm, 53/14mm, Staples
• 13/8mm-13/14mm

Important
When the staple gun is not in use pull back operating lever,
close down and hold in place with clip provided.
This will prevent staples from being fired inadvertently.
Always wear safety glasses when using or in work area.
NEVER point or aim a staple gun at another person.
